N10
Formula management for manual batch blending and compounding
The N10 product family offers full-featured, manual formulation systems (SMARTSCALE) designed to meet the production needs of a wide variety of compounding and manual blending applications.
These systems provide a reliable and cost-effective solution for formula and inventory management, as well as manual batch blending and compounding.
Each N10S system is a complete, stand-alone unit that includes an industrial-grade computer, NOVABLEND software, and an electronic scale. The operator simply selects the desired formula, and the system guides them through the process with on-screen prompts, indicating the precise amount of each component to dispense. Acoustic and graphical assistance ensures accuracy throughout the weighing process.
The integrated, computer-controlled scale can interface with a wide range of scale platforms, allowing customization based on environment, batch size, and required precision. A variety of scale capacities, resolutions, and environmental protections—including wash-down certified options—are available. Optional accessories include barcode scanners and label printers.

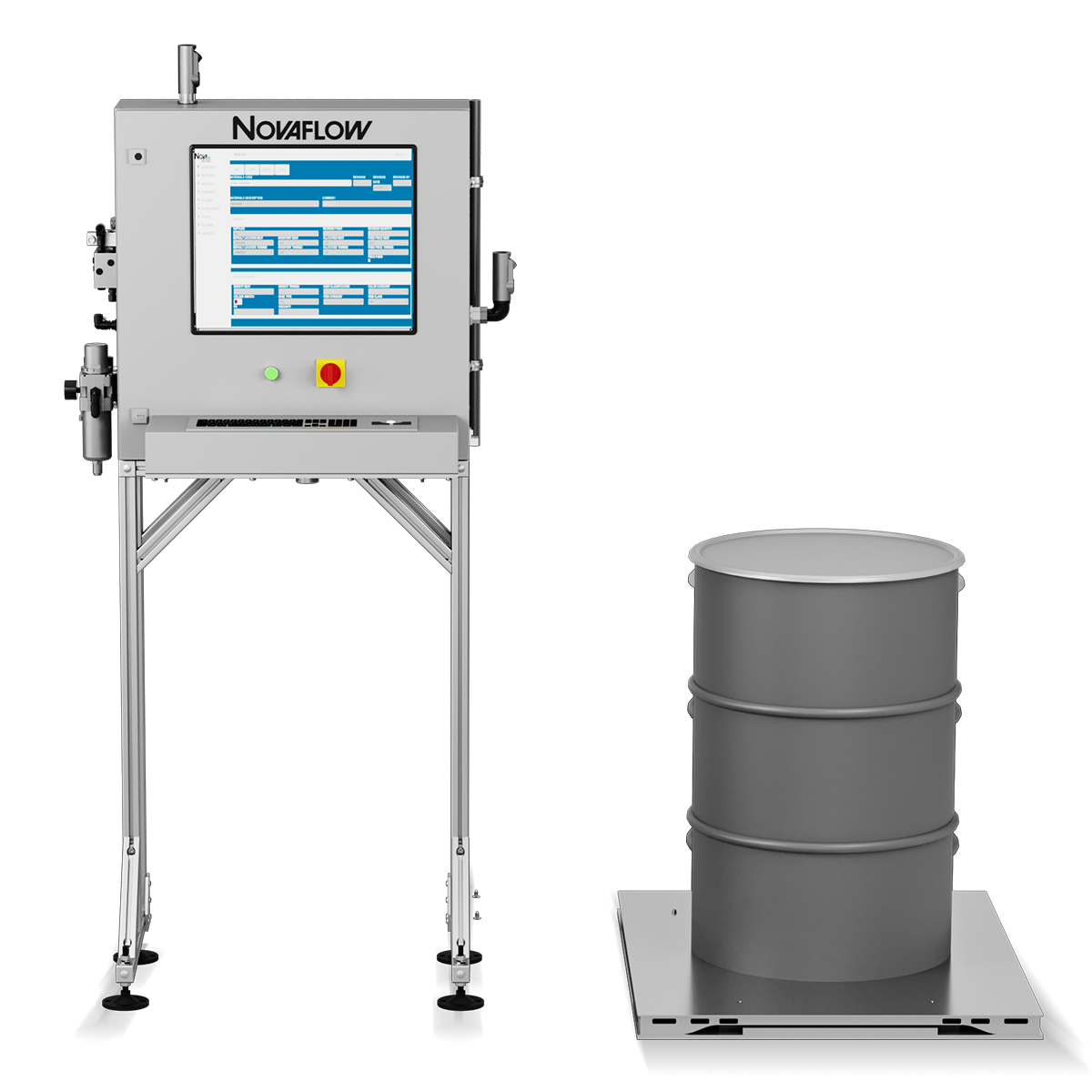

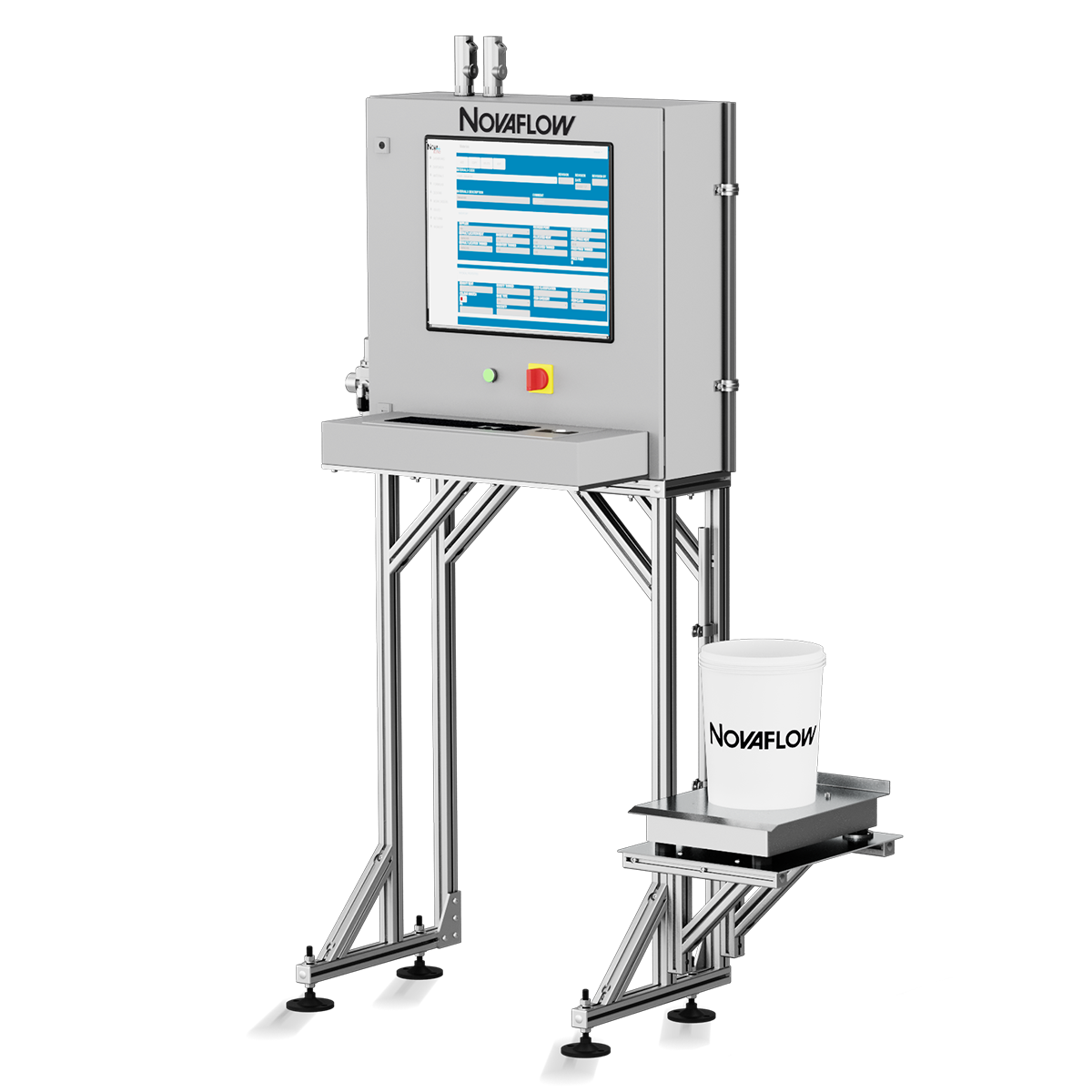

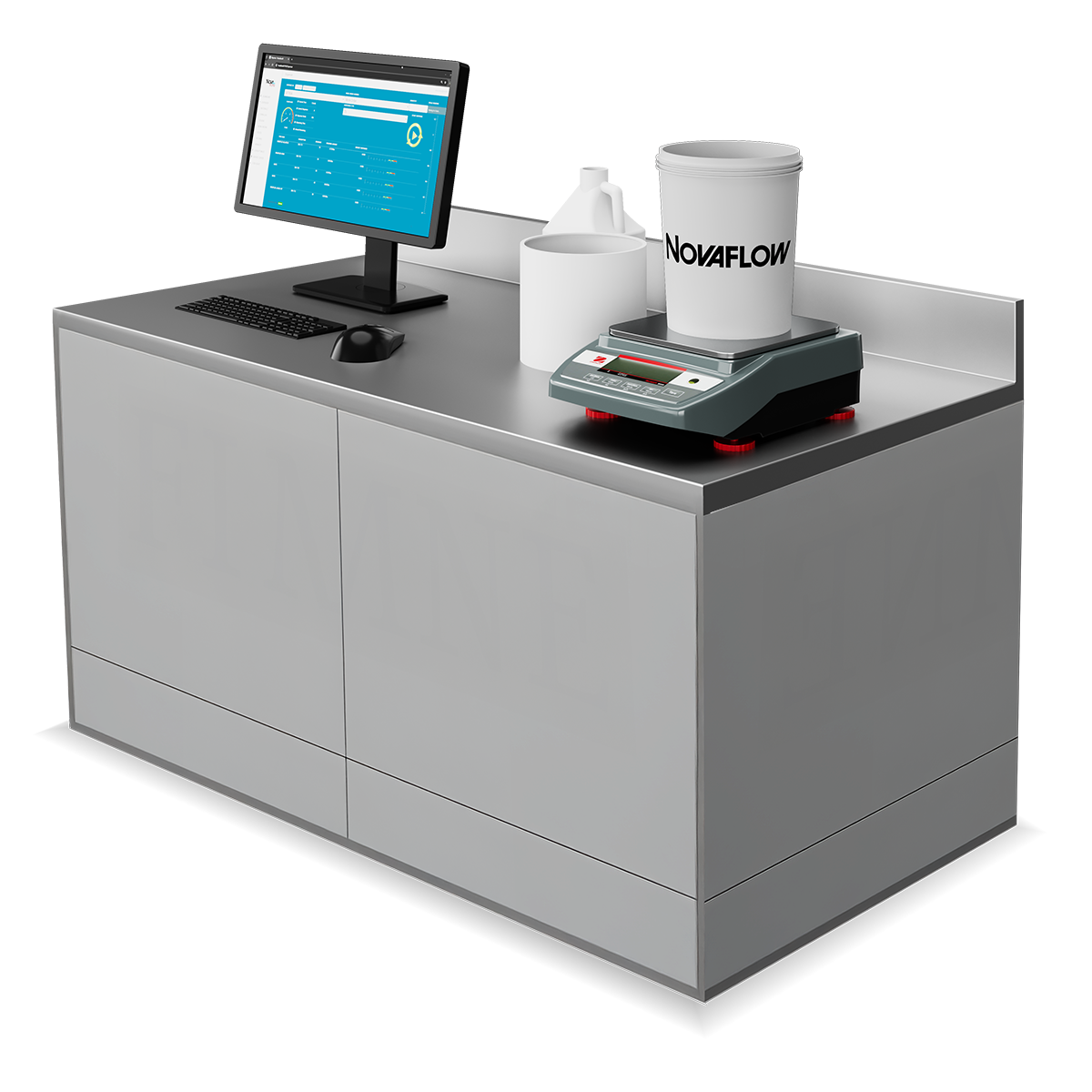

The N10S is available in both Desktop and Industrial versions, both intended for use in non-hazardous environments. For operations in classified hazardous areas, the N10SX variant is the ideal solution. It is certified and electrically grounded for FM Class 1/Division 1, IECx, and ATEX Zone 1/21 environments, and includes specialized hardware for safe operation in such conditions.
Whether in standard or hazardous environments, the N10S and N10SX systems offer a scalable, user-friendly solution that grows with your production needs.
- NOVABLEND Level 1 Enterprise Materials Management Software
- Acoustic and graphical weighing assistance
- Automated re-formulation for accidental additions
- Material, formula, and work order databases
- Environmental / VOC reporting (N10SX)
- Multi-user network and remote access
- Optional barcode scanners and label printers
- Scalable to fully automated dispensing with pump circuits
Technical data
| N10S (Desktop) | N10S (Industrial) | N10XS | |
| Working Environment | Non-hazardous | Non-hazardous | Hazardous |
| Dispensing type | Sequential | Sequential | Sequential |
| Scale capacity [lbs] (kg) | 12 – 6000 [6 – 3000] | 12 – 6000 [6 – 3000] | 12 – 6000 [6 – 3000] |
| Scale resolution | ±0.0002 – 0.01 lbs [±0.1 – 5g] | ±0.0002 – 0.01 lbs [±0.1 – 5g] | ±0.0002 – 0.01 lbs [±0.1 – 5g] |
| Dimensions HxLxD [in] (mm) | 34 x 20 x 18 (864 x 508 x 457) | 48 x 20 x 75 (1219 x 508 x 1905) | 48 x 20 x 75 (1219 x 508 x 1905) |
| Footprint [sq ft] (sqm)* | 4.7 (0.4) | 6.7 (0.6) | 6.7 (0.6) |
| Weight [lbs] (kg)* | 25 (11) | 270 (122) | 270 (122) |
| Power supply | 110 / 220 Vac, 50-60 Hz, 10A fuse, single phase | 110 / 220 Vac, 50-60 Hz, 10A fuse, single phase | 110 / 220 Vac, 50-60 Hz, 10A fuse, single phase |
| Compressed air supply | Not required | Not required | 5 scfm@90psi |
| Connectivity (for remote service) | Ethernet | Ethernet | Ethernet |
| Certifications | CE, ESA, CSA, UL | CE, ESA, CSA, UL | CE, ESA, CSA, UL, FM Class 1/Division 1, IECx and ATEX Zone 1/2 |
* Values dependant on scale selection, specifications for N10 systems indicated.
Note: data refers to machine base configuration, values may vary according to different specifications.
